• Space-saving design for molds with closely spaced coolant ports.
• Long sleeve socket facilitates connection/disconnection with plug embedded in mold.
• Enables quick mold cooling water line connection/disconnection.
• Various sizes and end configurations to suit a wide variety of mold applications.
• Can be connected with Super Cuplas, excluding K3 and K4 types.
• Push-to-connect design. (Built-in automatic shut-off valve in the socket) Also available is Cupla without a valve.
• Cupla for braided hose connection requires no hose clamp. (Model K-90SN).
MOLD CUPLA
Working pressure 1.0 MPa | Valve structure one-way shut off, straight through | Applicable fluids Water, Heated Oil
Specs & Details
Key Features
Applications
• Die & Mold

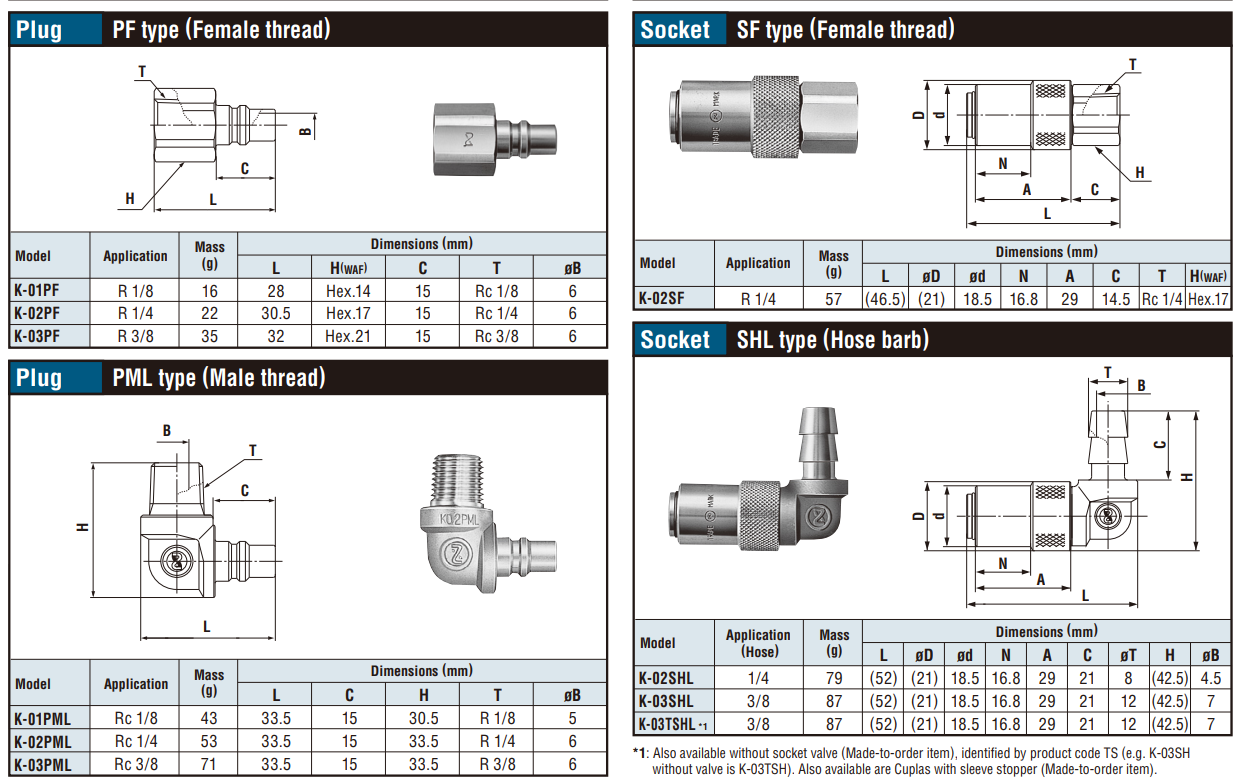

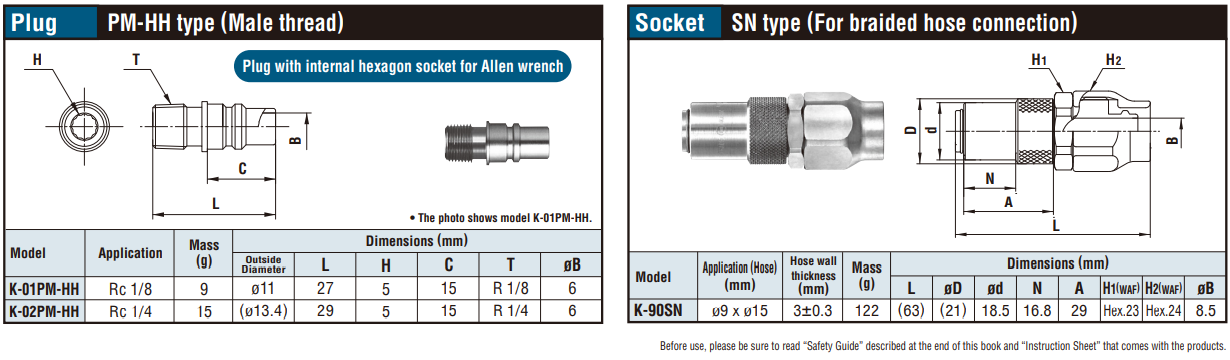

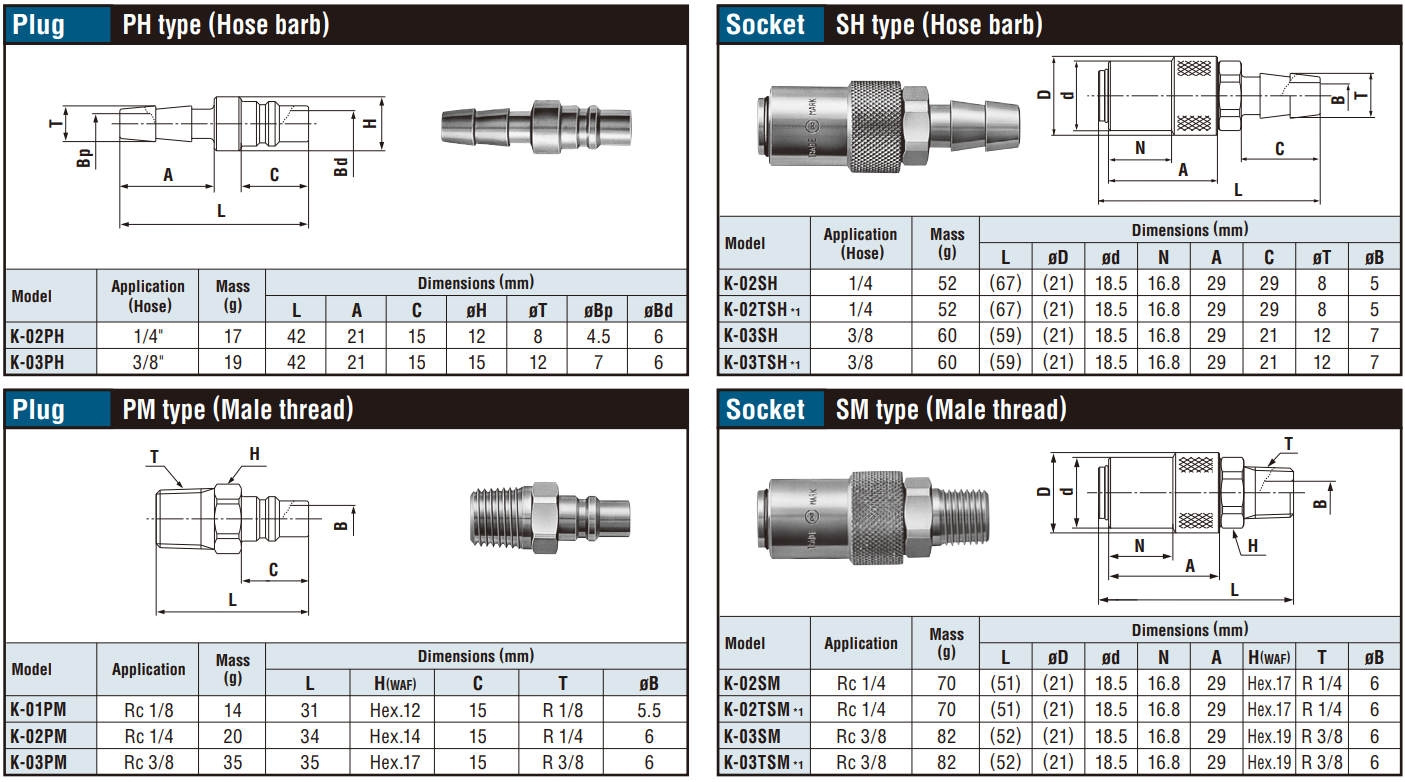

Specifications
| Body Material | Brass | |
| Size | Thread | 1/8", 1/4", 3/8" |
| Hose Barb | Hose: 1/4", 3/8" / Braided hose: ø9 x ø15 | |
| Working Pressure | MPa | 1.0 |
| kgf/cm2 | 10 | |
| bar | 10 | |
| PSI | 145 | |
| Seal material Working temperature range |
Seal material | Mark | Working temperature range |
Remarks |
| Nitrile rubber | NBR (SG) | -20°C to +80°C | Standard material | |
| Fluoro rubber | FKM (X-100) | -20°C to +180°C | Available on request |
Max working pressure and working temperature range of Cupla for braided hoses depend upon the specifications of braided hoses to be used.
