HOSE ASSEMBLIES

POLYURETHANE - STRAIGHT AND COIL HOSES

Hi-Cupla Ace sockets with polyurethane coil hoses are now standard stock items with push-to-connect design for quick piping.

• Spiral polyurethane coil hoses processed from straight tube have self-recoiling feature
• The Hi-Cupla Ace socket is mounted on pliable polyurethane hose featuring excellent durability and wear resistant with hose guard nut to prevent possible kinking
• Plastic socket will cause minimum risk of damage even in contact with tools or equipment
• Air flows in either direction from plug or from socket side when coupled

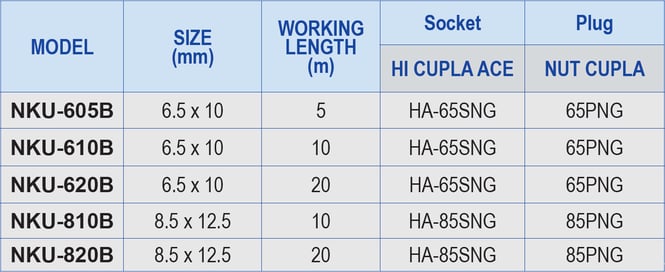

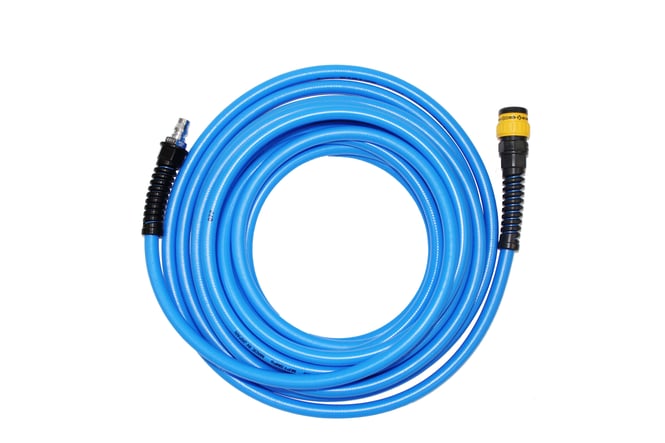

STRAIGHT HOSE AVAILABLE IN:

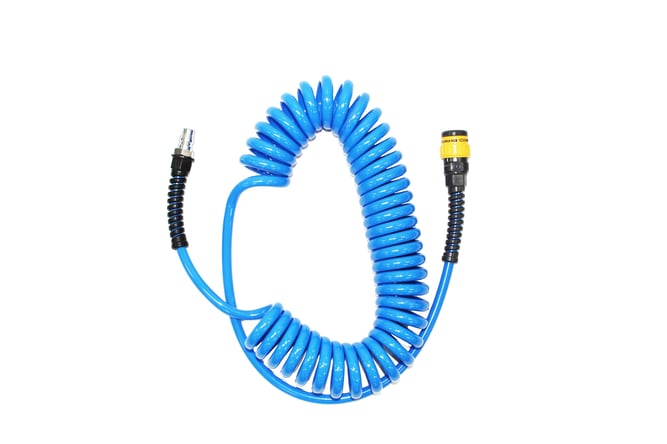

COIL HOSE AVAILABLE IN:

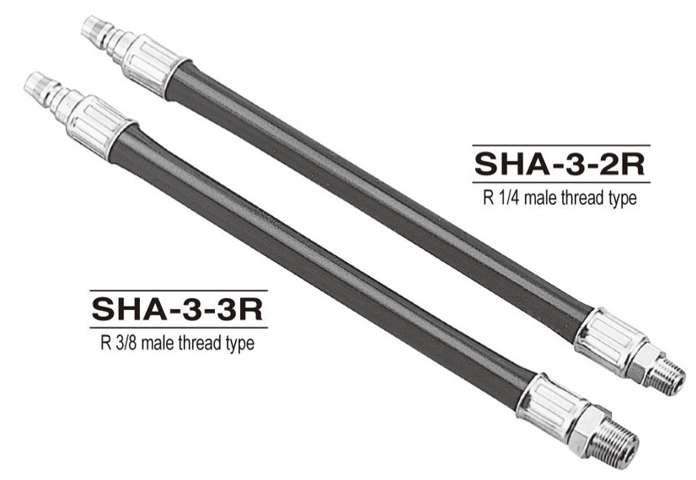

ANTI-VIBRATION PLUG HOSES

Protects Cupla from shocks generated by vibrating and impact tools. Features include:

• Optimises life and prevents wear of Cupla by absorbing strong shocks generated by connected vibrating tools
• Prevents hard-to-notice flow reduction caused by Cupla wear under continuous vibration
• Flexible rubber hose allows free and wide range of tool motion
• 320mm overall length in both 1/4" and 3/8"
