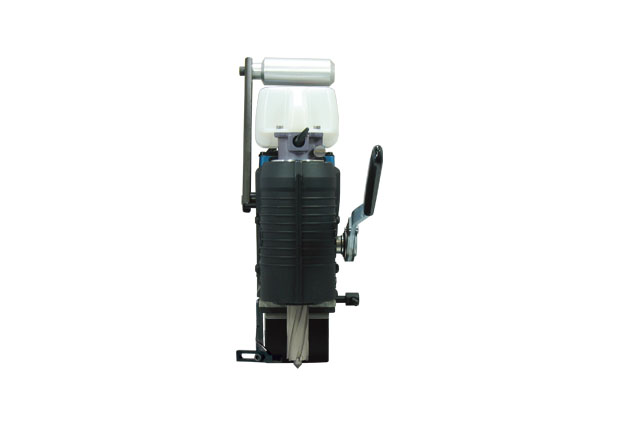

LO 3550

131.8mm X 230mm (Without Handle And Coolant Tank) | 8.7kg

LO 3550 Brochure

LO 3550 Instruction Manual

Specs & Details

Key Features

• Super lightweight 8.7kg
• Compact size (230 x 316mm)
• Only needs 65mm web or flange width for drilling
• Designed to improve drilling in confined spaces and elevated locations
• Smart LED sensor technology
• Reversible feed handles
• Adjustable drilling position (10mm right / left & front / back)
• 35mm capacity, through 50mm plate
• 6mm minimum plate thickness

Applications

• Perfect for H-beam work
• Great for elevated work due to lightweight design
• Compact size to get into narrow spaces where other mag base drills can't reach

Specifications

Model No.	LO-3550
Power Source	220~240V AC 50/60HZ
No Load Speed	950rpm
Hole Diameter	12-35mm
Plate Thickness	6-50mm
Magnet Holding Power	561 kg/f
Weight	8.7kg

Accessories

Standard Accessories

• Carry Case
• Coolant Tank
• Pilot pin 08035
• Spanner 17mm
• Spanner 7 x 8mm
• Spanner 8 x 10mm
• Safety strap
• Hex. socket bolt 5 x 12
• Hex. socket head set screw 8 x 28
• 4mm Hex. socket screw key
• 5mm Hex. socket screw key
• Spanner 8 x 10mm
• Sub handle and Feed handle

Optional Accessories

• HIBROACH - (High-Speed Steel One-Touch Type 25-50mm depth of cut from 12-22mm dia)
• TCT Carbide Tipped Cutters (25mm, 35mm & 50mm depth of cut)
• Jet Oiler(Part No.TQ10581 can be used with tube Part No.TB01098)
• Chip Breaker (Part No. NPTB07691)
• Lubrication Adaptor Ass'y (Part No. TB07306)
