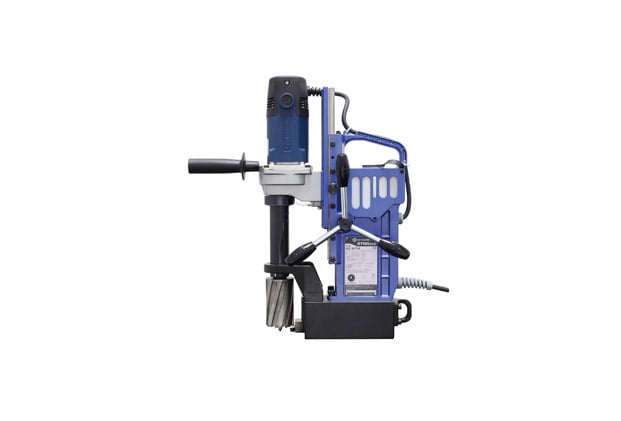

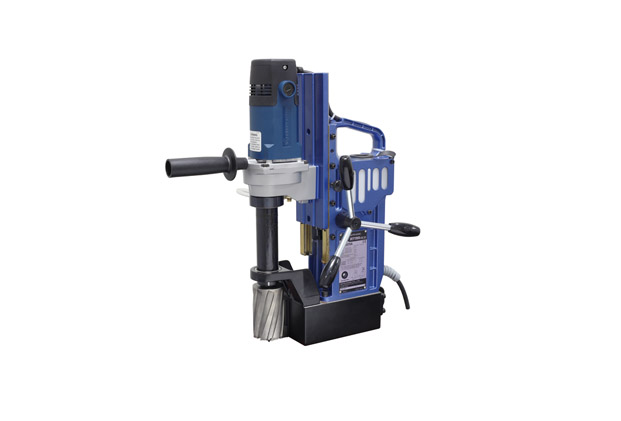

AO 5575A

    296mm x 86mm x 506mm | 17.5kg

    Specs & Details

    Key features
    Applications
    Specifications
    Accessories
    Key Features
    • Manual feed
    • For smooth cutting of deep and large holes
    • A real workhorse
    • New powerful single-speed motor 520rpm
    • 1020 kg/f double rectangular magnet
    • Cuts up to 55mm thru 75mm plate
    • One-touch arbor
    • Supplied in sturdy carry case
    Applications
    • Steel fabrication, manufacturing, construction and shipbuilding
    Specifications
    Model AO-5575A
    Power Source (Single Phase) 220~240V AC 50/60 Hz
    Rated Power Consumption 950W
    No Load Speed 520rpm
    Hole Diameter 12-55mm
    Plate Thickness 9-75mm
    Magnetic Holding Power 1,020 kgf
    Weight 17.5 kg
    Accessories

    Standard Accessories

    • Pilot Pin 0625 / 0650 / 0825 / 0850 : 1 pc
    • Chain Ass'y : 1 set
    • Chip Breaker : 1 pc.
    • Side handle ass'y : 1 set
    • 3mm / 5mm Hex socket screw key : 1 pc
    • 8mm x 10mm spanner : 1 pc
    • Guard ass'y : 1 set


    Optional Accessories

    • JETBROACH: One-touch type: 35L, 50L and 75L
    • Chuck adapter NPCHUCK ADPT AO5575A
    • 13mm keyed chuck NPCHUCK 13MM
