HI-CUPLA 200

Working pressure 1.5 MPa | Valve structure one-way shut-off | Applicable fluids Air

Hi Cupla 200 Brochure

Specs & Details

Key features

Applications

Specifications

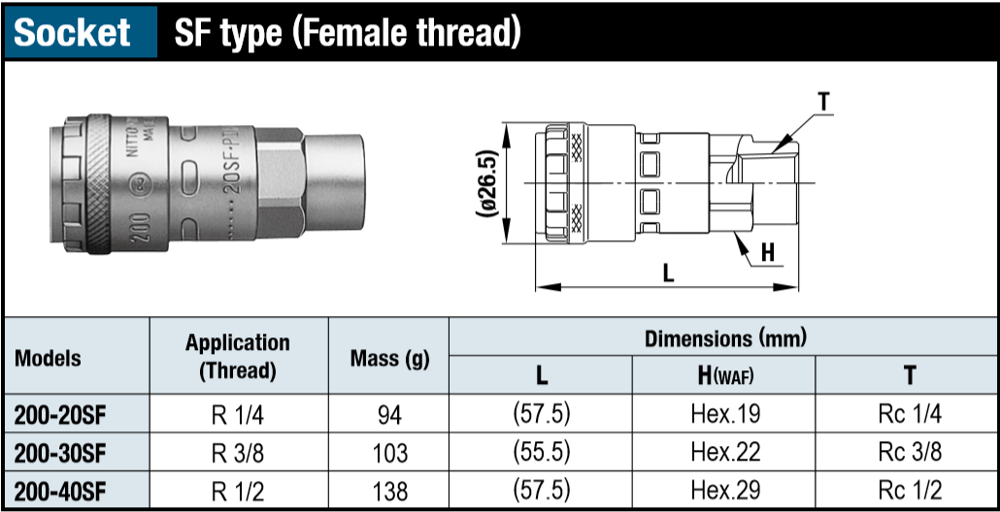

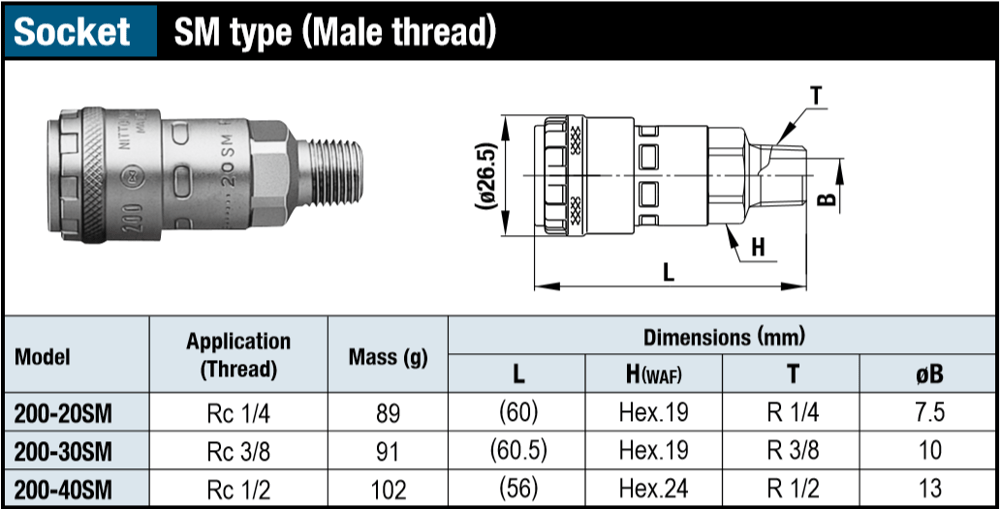

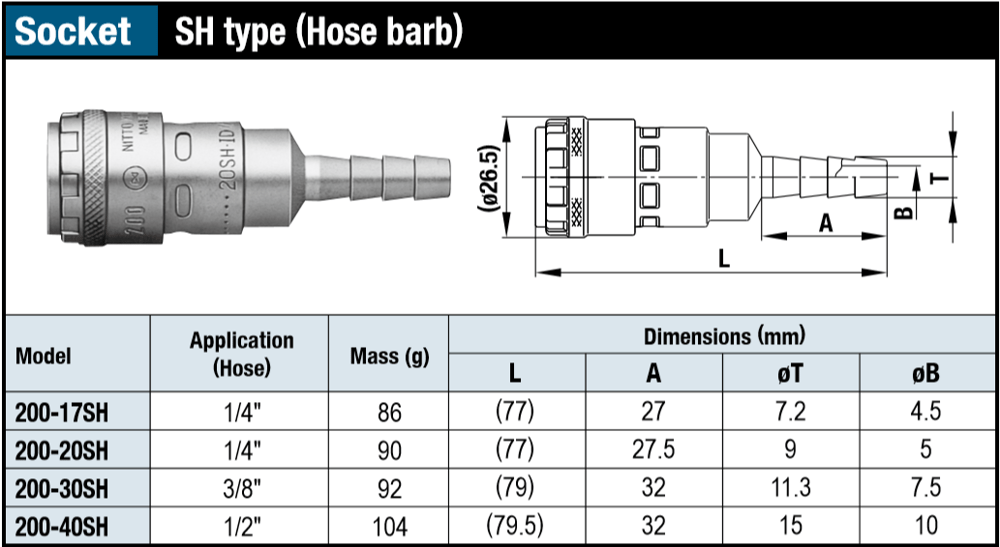

Sizes Available

Key Features

• Push plug into the socket for simple and secure connection

• New valve design for low pressure loss to achieve flow rate increase

• End-face seal is achieved when connected

• Enhanced operability with low connection resistance

• End-face seal design is superior to external seal with an O-ring due to no seal damage caused by exhaustion lubrication

• Available only with steel body. Not suitable for water and oil

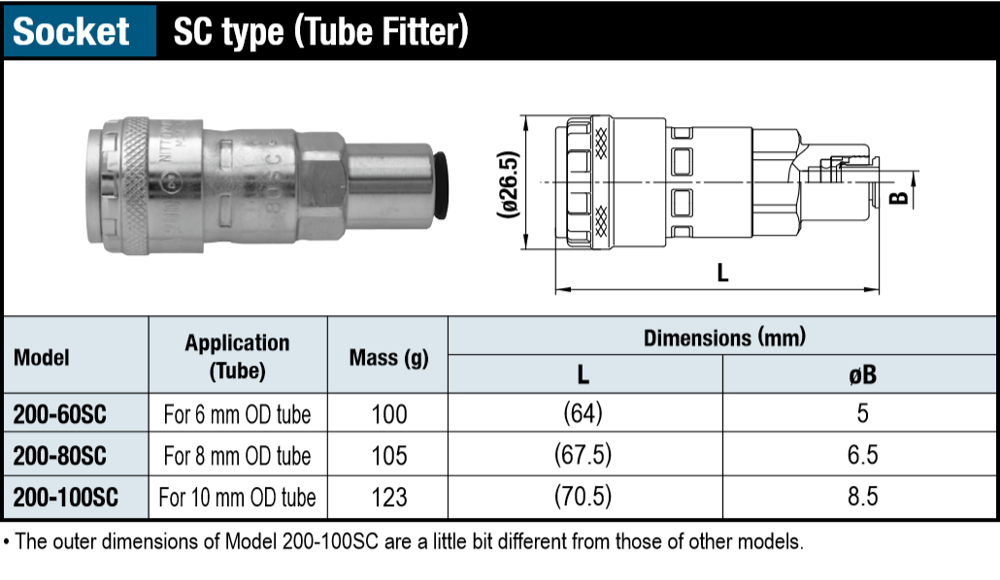

• Also available with quick connect/disconnect Tube Fitter type

Applications

• Air lines

Specifications

Body material		Steel (Chrome-plated)
Size	Thread and hose barb	1/4", 3/8", 1/2"
	Tube barb (Tube fitter)	Polyurethane tube: Outside Dia. ø6 ± 0.1, ø8 ± 0.15, ø10 ± 0.15 Polyamide tube: Outside Dia. ø6 , ø8 , ø10 Fluorine contained resin tube: Outside Dia. ø6 ± 0.07, ø8 ± 0.07, ø10 ± 0.07
Working pressure	MPa	1.5
	kgf/cm2	15
	bar	15
	PSI	218

Seal Material	Seal material	Mark	Working temperature range	Remarks
Working temperature range	Nitrile rubber	NBR (SG)	-20°C to +60°C	Standard material

• Above are specifications only for Cuplas. Max working pressure and working temperature range may vary depending on the materials of the tube and the working temperature.
