LOCK CUPLA 200

Working pressure 1.5 MPa | Valve structure one-way shut-off | Applicable fluids Air

Specs & Details

Key Features
• Locking mechanism prevents accidental disconnection after connection
• Good for connection between hoses
• Simple one push of plug and socket to each other for connection
• Easy handling improves job efficiency

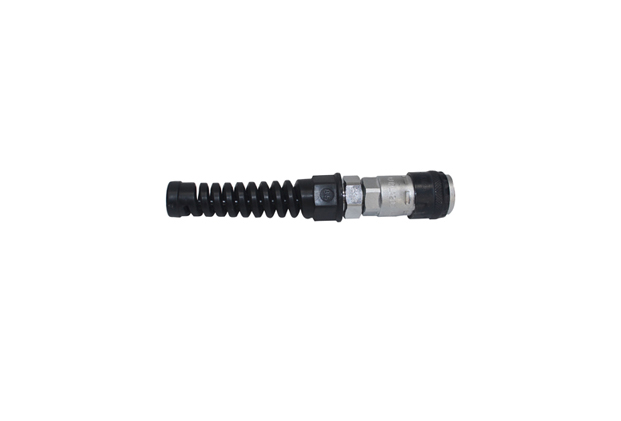

• Ball bearing swivel mechanism prevents hose twists and relieves load on holding hands (SNRG type)
• To mount on hose, simply slide it over the nipple and tighten the nut (SNRG type)
• Hose guard nut to prevent hose from kinking as a standard feature (SNRG type)
• Low pressure loss valve design gives improved flow rate
Applications
• Air lines

Specifications
Body material Steel (Chrome-plated)
Size Thread and hose barb 1/4", 3/8", 1/2"

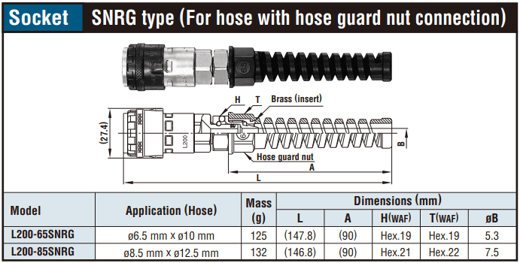

  SNRG type For ø6.5 mm x ø10mm, ø8.5 mm x ø12.5 mm hose
Working pressure MPa 1.5
kgf/cm² 15
bar 15
PSI 218
Seal material
Working temperature range
Seal material Mark Working
temperature range
Remarks
Nitrile rubber NBR (SG) -20°C to +60°C Standard material

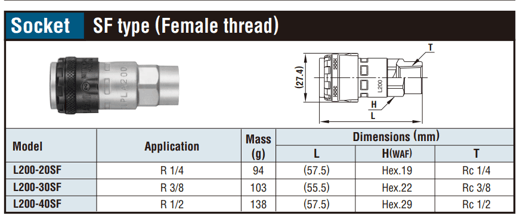

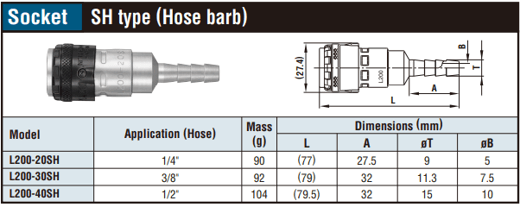

Sizes Available
