• Nut types are available in Hi Cupla Series and Hi Cupla 200 Series. Hose guard nut type available to prevent hose kinking.
• To mount on the hose, simply slide it over the nipple and tighten the nut.
• The design to tighten outside of hose reduces hose slip away or fluid leaks.
• Also available are Rotary Nut Cupla equipped with a ball bearing swivel mechanism to prevent and relieve tension on the operator’s hands.

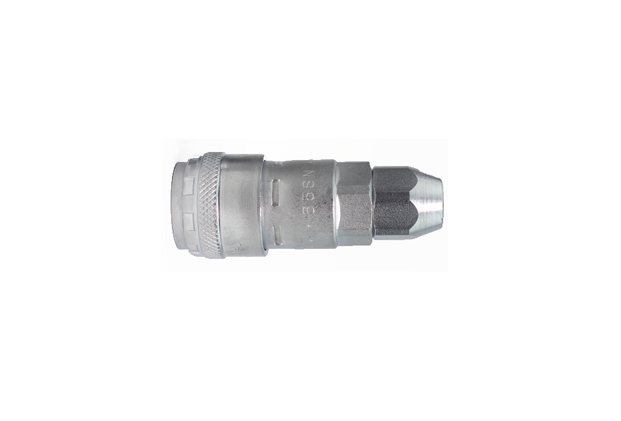

NUT CUPLA 200
Working pressure 1.5 MPa & 1.0 MPa | Valve structure one-way shut-off | Applicable fluids Air & Water
Specs & Details
Key Features
Applications
• Air lines

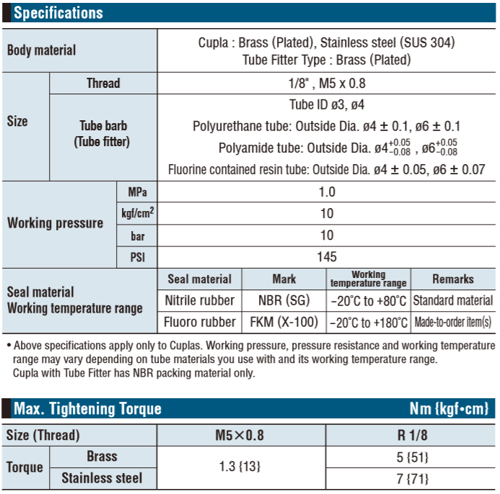

Specifications
