• An excellent general purpose coupling for connecting factory air supply to pneumatic tools.
• Steel coupling is suitable for air. Brass or stainless steel is suitable for water. Note that fluid will come out from the plug when disconnected.
• Critical structural parts of steel models are heat-treated for increased strength giving greater durability and resistance to wear.
• Available in various body materials, sizes and end configurations applicable to a wide range of applications.

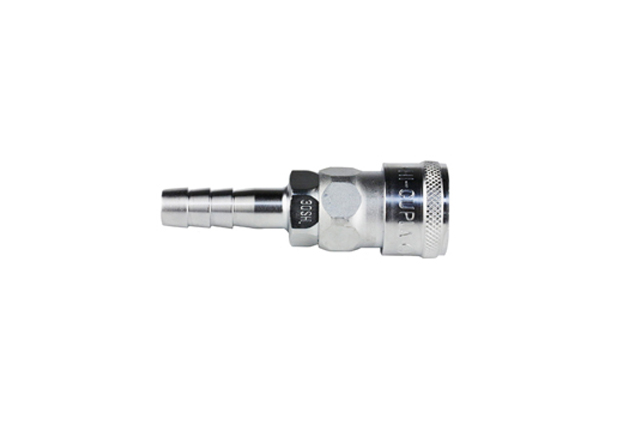

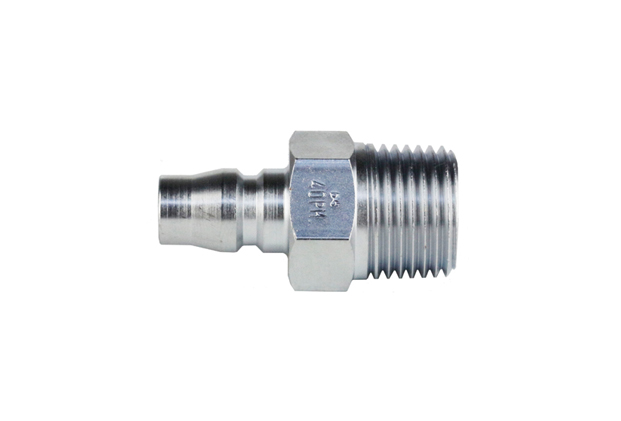

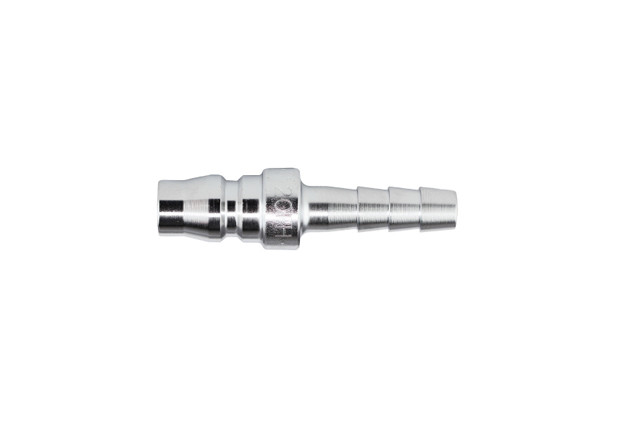

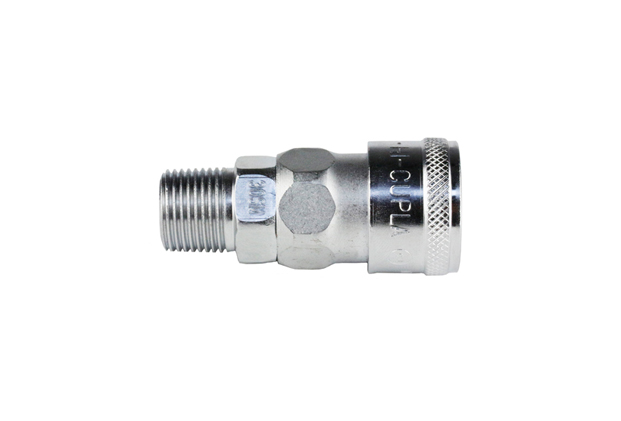

HI CUPLA
Working pressure 1.0 MPa & 1.5 MPa | Valve structure one-way shut-off | Applicable fluids Air, Water
Specs & Details
Key Features
Applications
• Airlines
• Pneumatic Tools
Specifications
| Body material | Steel (Chrome-plated) | Brass | Stainless steel (SUS304) | |
| Size | Thread | 1/8" to 1" | ||
| Hose barb | 1/4" to 1" hose | |||
| Working Pressure | MPa | 1.5 | 1.0 | 1.5 |
| kgf/cm2 | 15 | 10 | 15 | |
| bar | 15 | 10 | 15 | |
| PSI | 218 | 145 | 218 |
| Seal material Working temperature range |
Seal material | Mark | Working temperature range |
Remarks |
| Nitrile rubber | NBR (SG) | -20°C to +80°C | Standard material | |
| Fluoro rubber | FKM (X-100) | -20°C to +180°C |
Sizes Available
