HI-CUPLA ACE

HI-CUPLA ACE

Working pressure 1.5 MPa | Valve structure one-way shut-off | Applicable fluids Air, Water

Hi Cupla Ace-Brochure

Specs & Details

Key features

Applications

Specifications

Key Features

• Pressure ratings comparable to steel cuplas

• Built-in "automatic lock mechanism" locks the sleeve upon connection, thus prevents accidental disconnection

• Just push plug into socket for simple connection

• The weight is a quarter of Steel Hi Cupla for easy handling

• Can be used for air and water

• Air flows in either direction from plug or from socket side when coupled

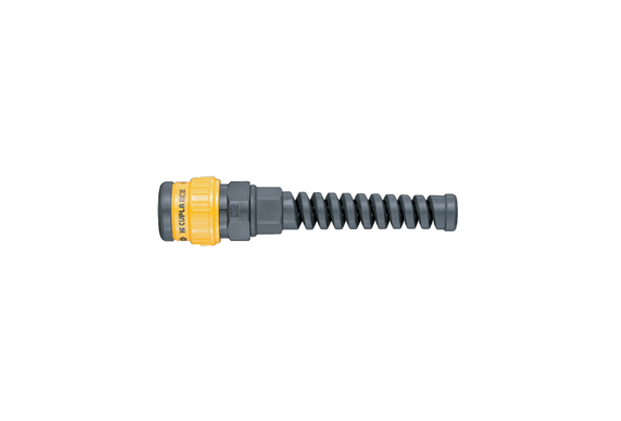

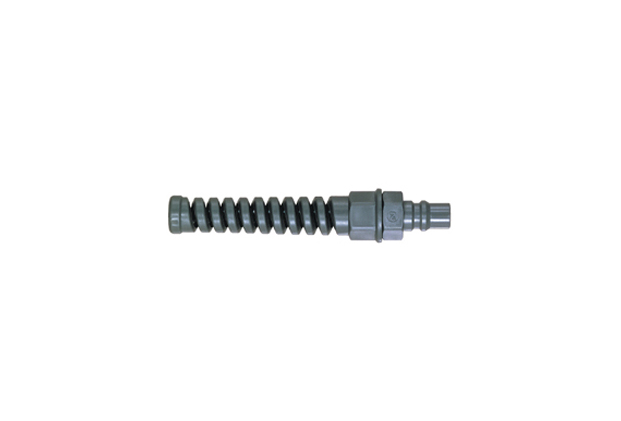

• Plug and socket with hose guard nut are also available

Applications

• Air lines

Specifications

Body Material	Cupla	Engineering plastics (PBT, POM)

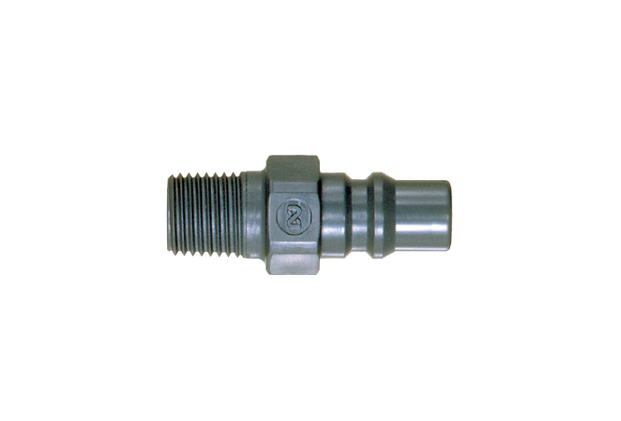

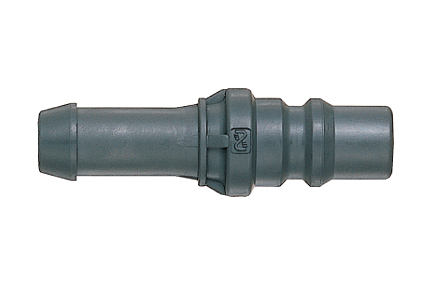

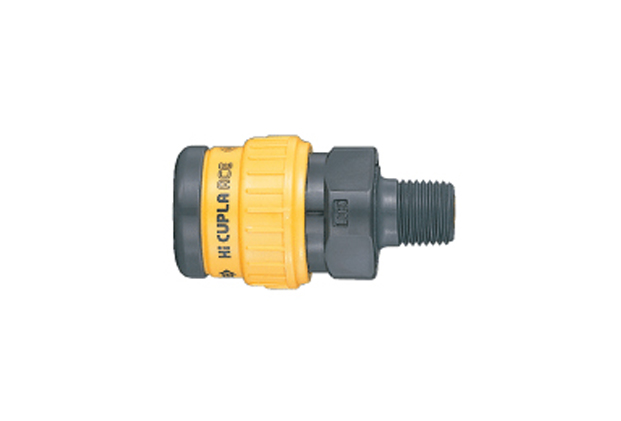

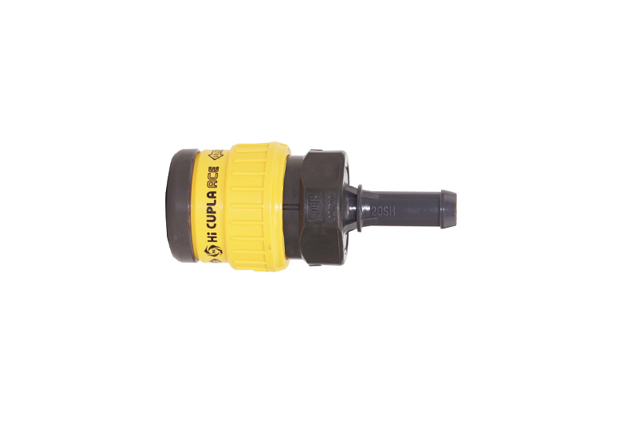

Size	Thread & hose barb	1/4", 3/8" / 1/4", 3/8"
	PN type, SN type (PNG type, SNG type	For ø5 mm x ø8 mm, ø6 mm x ø9 mm, ø6.5 mm x ø10 mm, ø8 mm x ø12 mm, ø8.5 mm x ø12.5 mm polyurethane hose
	T type	HA-T type • Inlet: 20P-PLA • Outlet: HA-65S x 2
Working Pressure	MPa	1.5
	kgf/cm²	15
	bar	15
	PSI	218

Seal Material	Seal Material	Mark	Working Temperature Range	Remarks
Working Temperature Range	Nitrile rubber	NBR (SG)	-20°C to +60°C	Standard material
