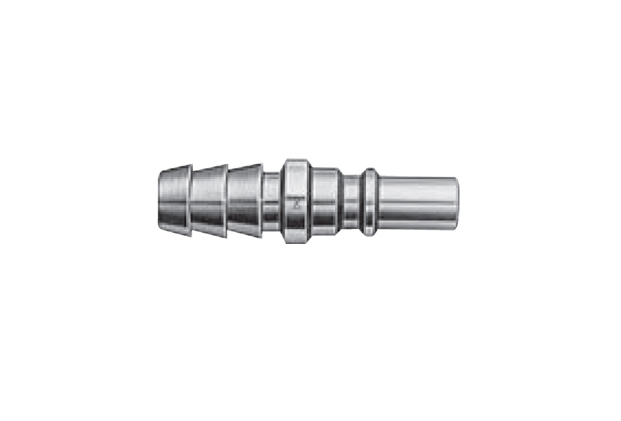

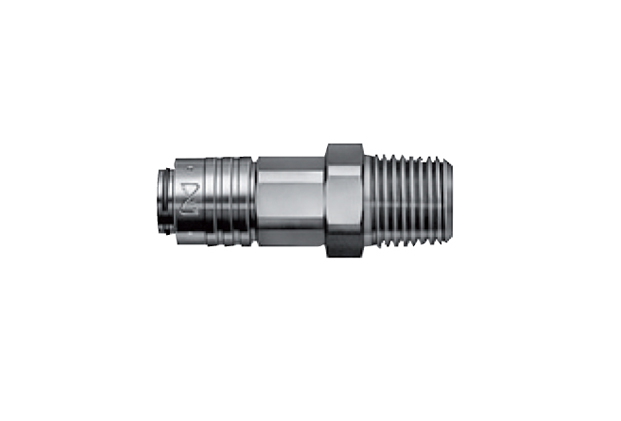

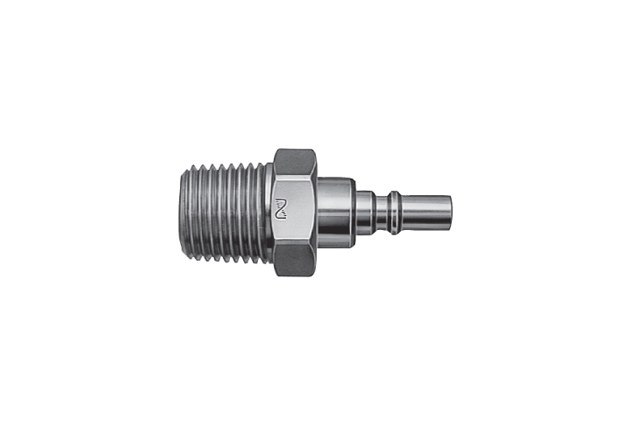

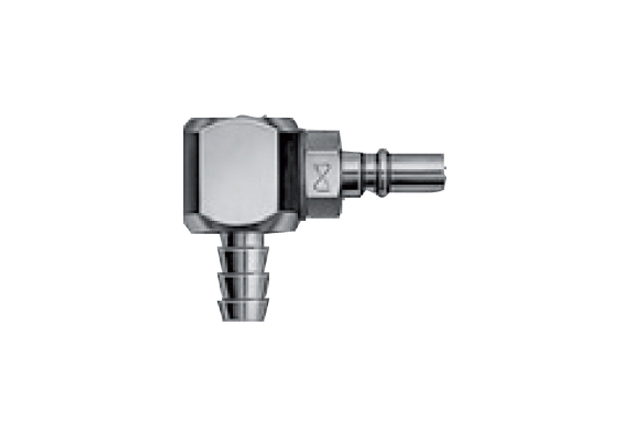

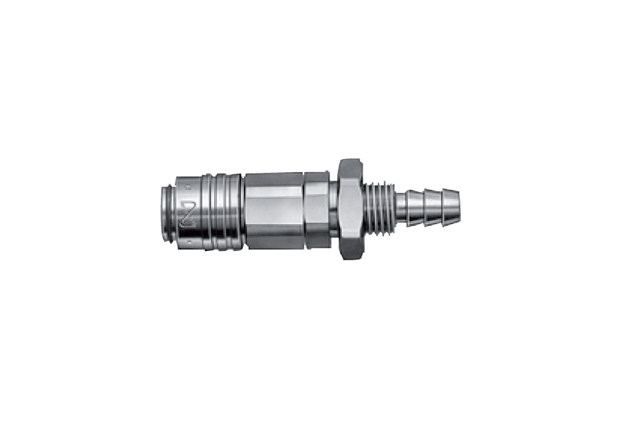

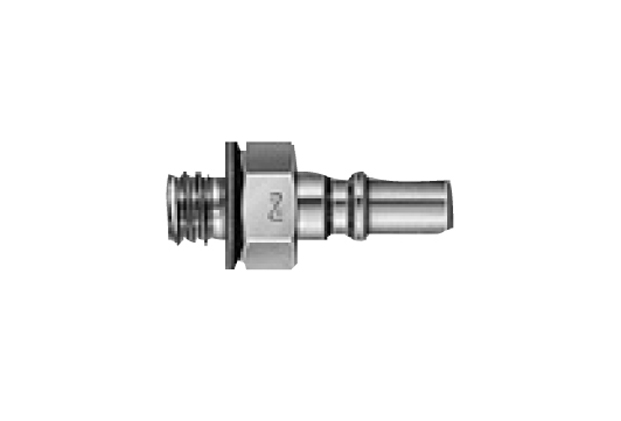

• Compact, lightweight Cuplas with only 9.5mm outer diameter
• Push-to-connect operation
• Tube Fitter type for even easier tube insertion
• Compact design for piping in narrow spaces
• A wide range of pneumatic applications

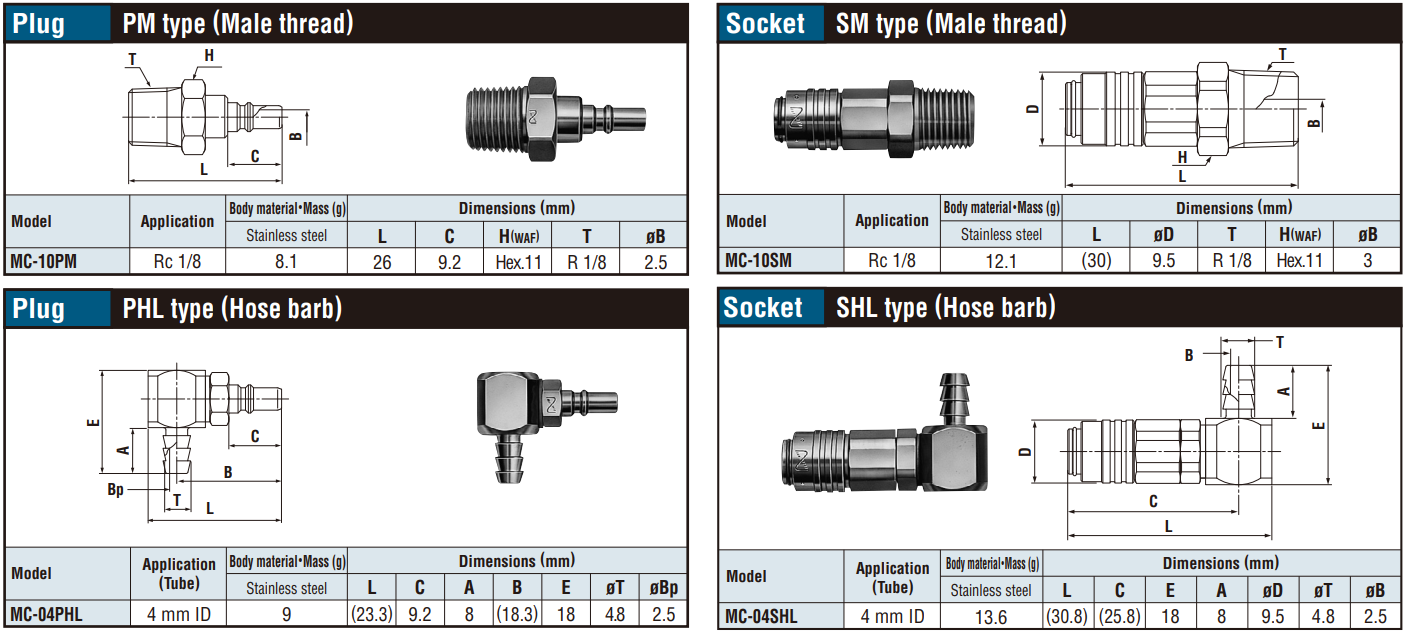

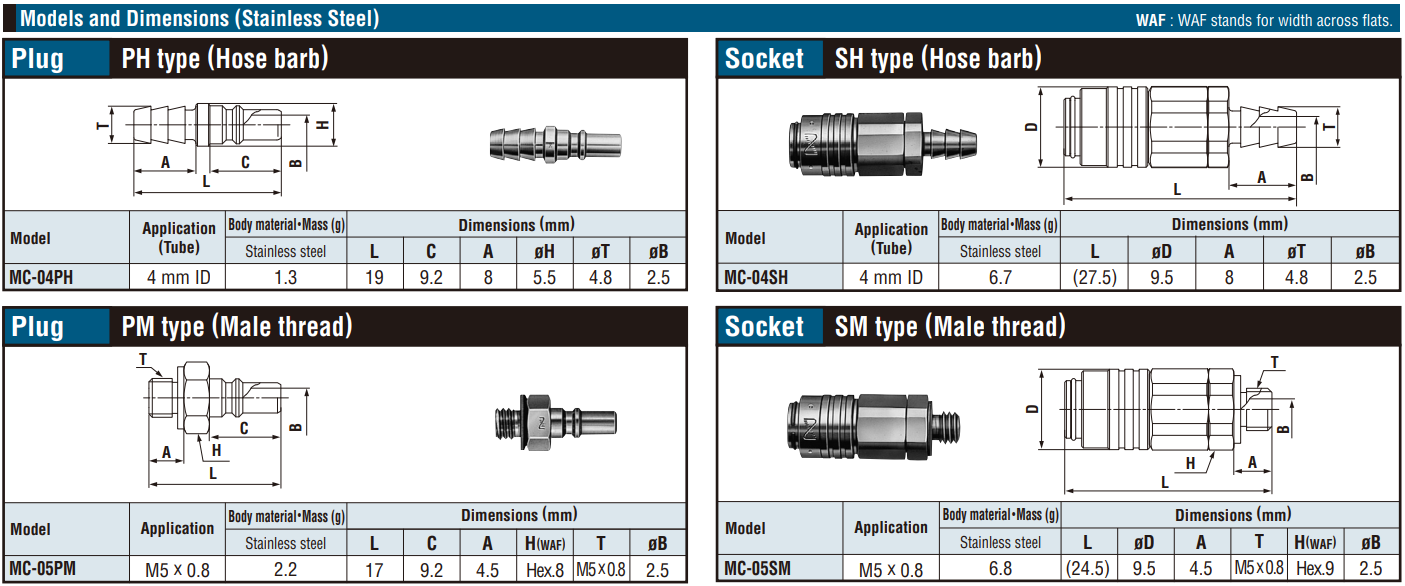

Body Material | Cupla | Brass (Plated), Stainless steel (SUS 304) |
Tube Fitter Type | Brass (Plated) | |
Size | Thread | 1/8", M5 x 0.8 |
Tube Barb (Tube Fitter) | Polyurethane tube: Outside Dia. ∅4 ± 0.1, ∅6 ± 0.1 | |
Polyamide tube : Outside Dia. ∅4 ±0.05 0.1, ∅6 ± 0.05 | ||
Fluorine contained resin tube: Outside Dia. ∅4 ±0.05 0.1, ∅6 ± 0.07 | ||
Working Pressure | MPa | 1.0 |
kgf/cm² | 10 | |
bar | 10 | |
PSI | 145 |
Seal material Working temperature range |
Seal material | Mark | Working temperature range | Remarks |
Nitrile rubber | NBR (SG) | -20°C to +80°C | Standard material | |
Fluoro rubber | FKM (X-100) | -20°C to +180°C | Made-to-order item(s) |
*Above specifications apply only to Cuplas. Working pressure, pressure resistance and working temperature range may vary depending on tube materials you use with and its working temperature range. Cupla with Tube Fitter has NBR packing material only.
