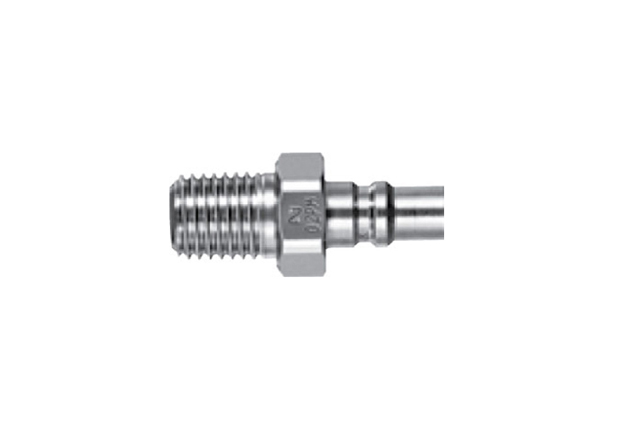

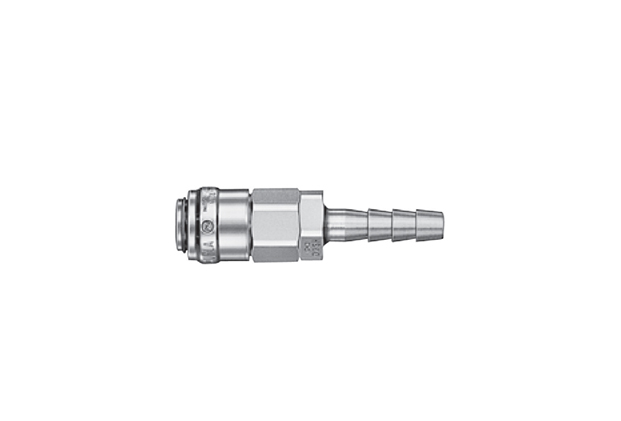

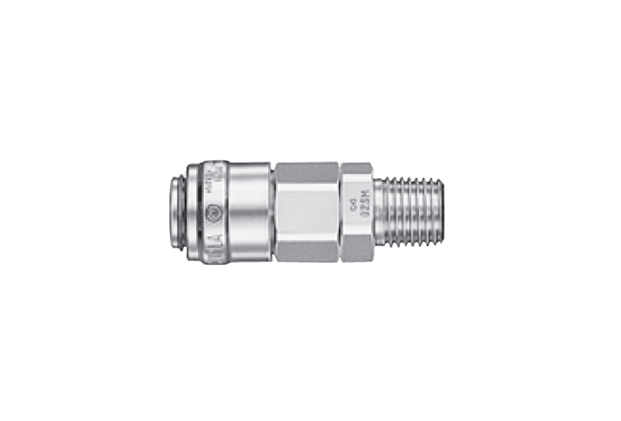

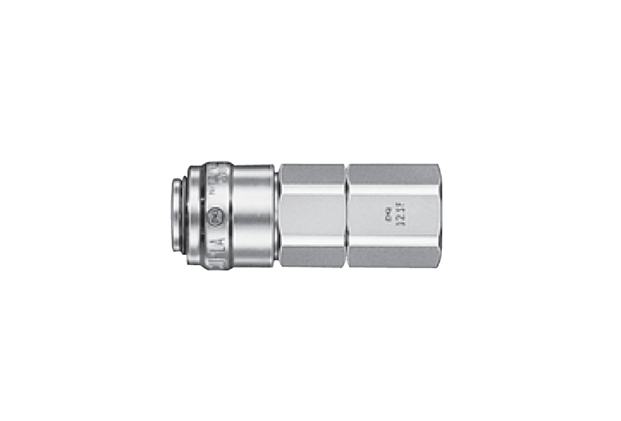

SUPER CUPLA

Working pressure 1.0 MPa | Valve structure one-way shut-off | Applicable fluids Air

Super Cupla Brochure

Specs & Details

Key Features

• Lightweight design suits direct connection to power tools

• Aluminium body is adopted for some models to reduce the weight

• Just push plug into socket for easy one hand connection

• Available in various end configurations for a wide range of pneumatic applications

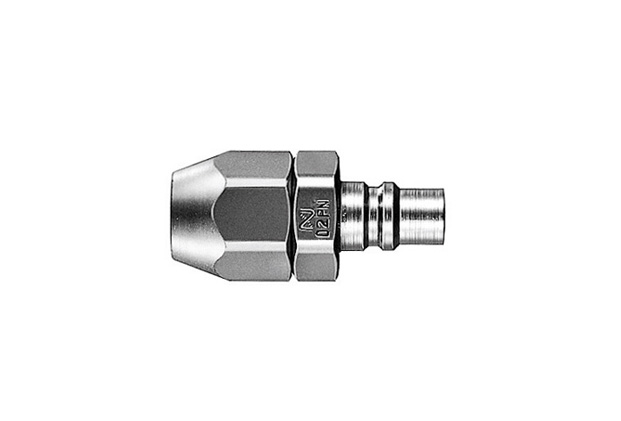

• Also available with quick connect/disconnect Tube Fitter type

Applications

• Pneumatic Applications

Specifications

Body material		Cupla: Steel (Chrome-plated), Aluminum alloy Tube Fitter Part: Brass (Nickel-plated)

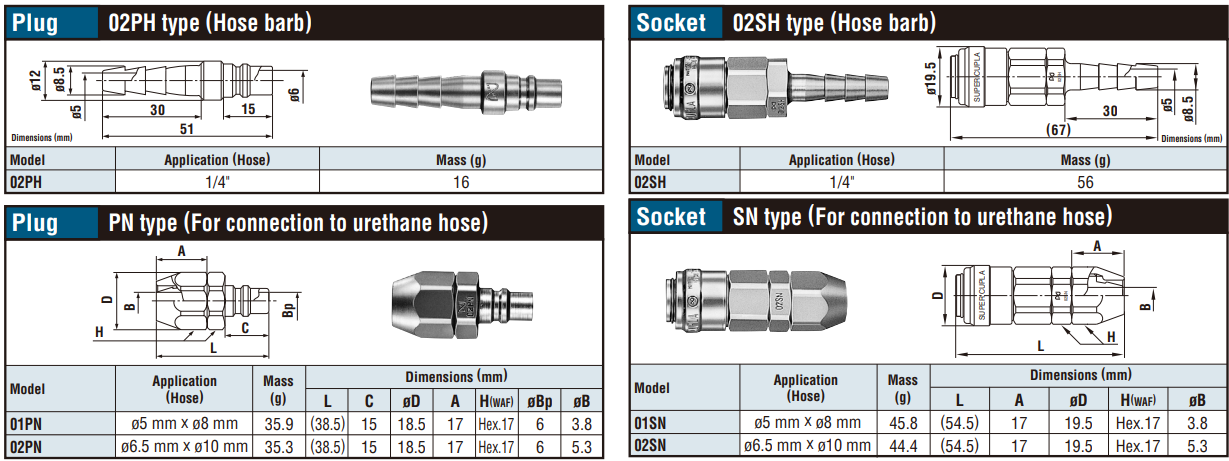

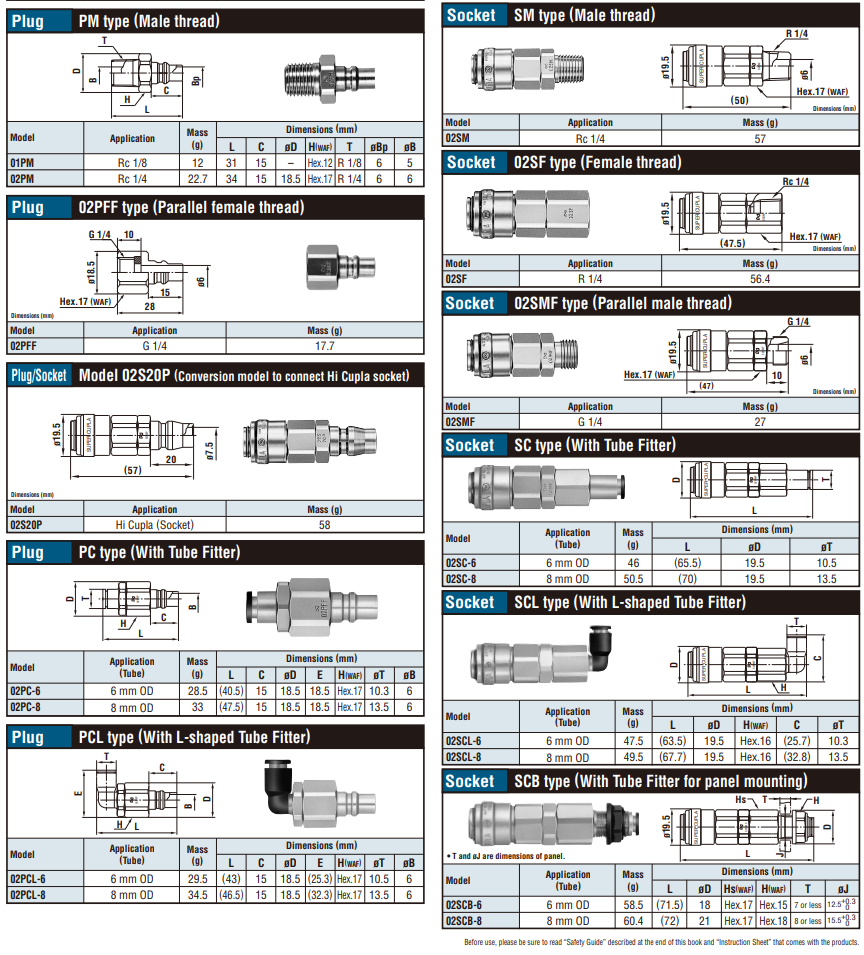

Size	Thread	1/8", 1/4"
	Hose barb	1/4", Urethane hose : ø5 x ø8, ø6.5 x ø10
	Tube barb (Tube fitter)	Polyurethane tube: Outside Dia. ø6 ± 0.1, ø8 ± 0.15 Polyamide tube: Outside Dia. ø6 , ø8 Fluorine contained resin tube: Outside Dia. ø6 ± 0.07, ø8 ± 0.07
Working Pressure	MPa	1.0
	kgf/cm²	10
	bar	10
	PSI	145

Seal material	Seal material	Mark	Working temperature range	Remarks
Working temperature range	Nitrile rubber	NBR (SG)	-20°C to +80°C	Standard material

• Above specifications apply only to Cuplas. Max working pressure and working temperature range may vary depending on the tube materials you use and the working temperature. Cupla with Tube Fitter has NBR packing material only.
