• Just push in the plug for connection regardless of internal pressure in the socket.
• Even after connection, lever operation gives perfect control over valve opening/closing.
• In disconnection, lever-action releases residual air pressure in the plug
without unpleasant popping noise and hose whip motion.
• Safe design prevents the lever-operated valve from opening when the plug is not connected.

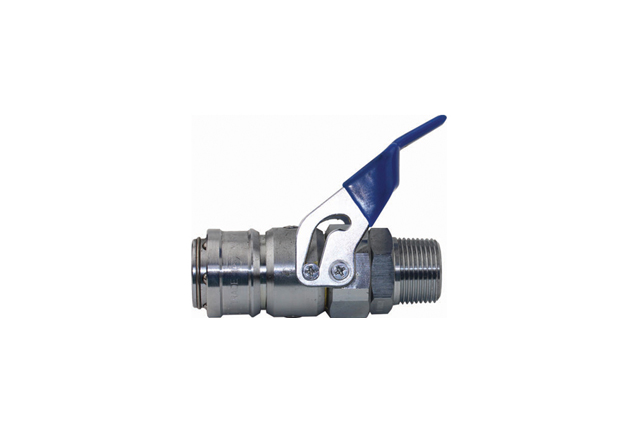

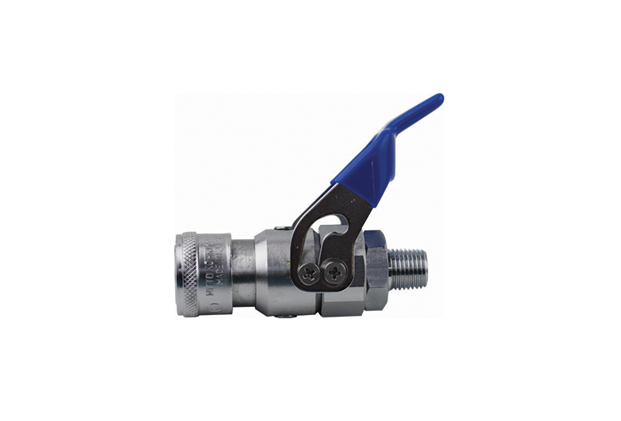

PURGE HI CUPLA
Working pressure 1.5 MPa | Valve structure one-way shut-off | Applicable fluids Air
Specs & Details
Key Features
Applications
• Air lines
