HI-CUPLA BL

Working pressure 1.5 MPa | Valve structure one-way shut-off | Applicable fluids Air, Water (Steel applies to air only)

HI Cupla BL Brochure

Specs & Details

Key Features

• Sleeve-lock mechanism prevents accidental disconnection

• Excellent general purpose coupling for connection factory air supply to pneumatic tools

• Steel coupling is suitable for air

• Stainless steel is suitable for water

• Critical structural parts made of steel are heat-treated for increased strength giving greater durability and resistance to wear

• Various body materials, sizes, and end configurations are available

• SN-Bl type for connection to urethane hose requires no hose clamp

Applications

• Air lines

Specifications

Body material		Steel (Chrome-plated)	Stainless steel (SUS304)
Size	Thread & hose barb	For ø6.5 x ø10 mm hose For ø8 x ø12 mm hose For ø8.5 x ø12.5 mm hose	-
Size	SN Type		-
Working pressure		MPa	1.5
		kgf/cm2	15
		bar	15
		PSI	218

Seal Material	Seal Material	Mark	Working Temperature Range	Remarks
Working Temperature Range	Nitrile rubber	NBR (SG)	-20°C to +80°C	Standard material

Note: Working temperature range of SN-BL type is -20°C - +60°C.

Sizes Available

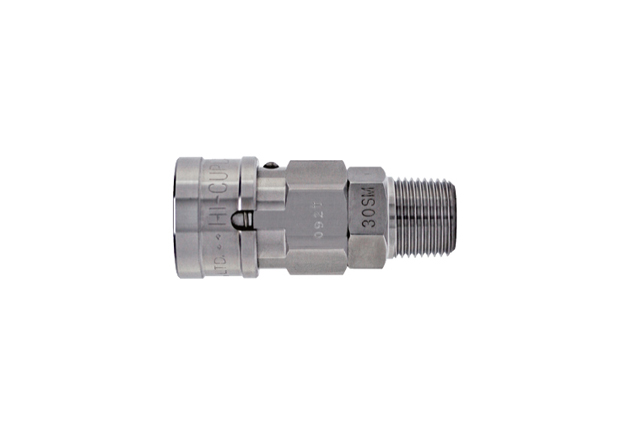

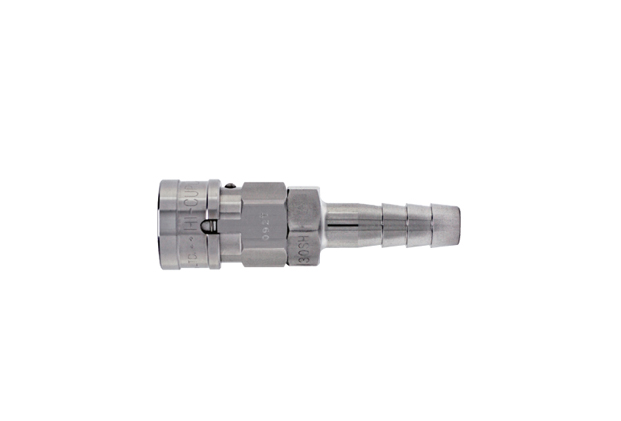

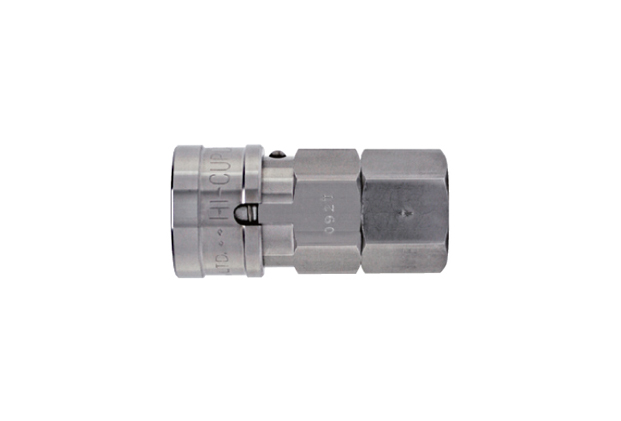

HI CUPLA BL_SOCKET_SH TYPE_STAINLESS STEEL HI CUPLA BL_SOCKET_SH TYPE_STEEL HI CUPLA BL_SOCKET_SM TYPE_STAINLESS STEEL HI CUPLA BL_SOCKET_SF TYPE_STEEL HI CUPLA BL_SOCKET_SF TYPE_STAINLESS STEEL HI CUPLA BL_SOCKET_SN TYPE
